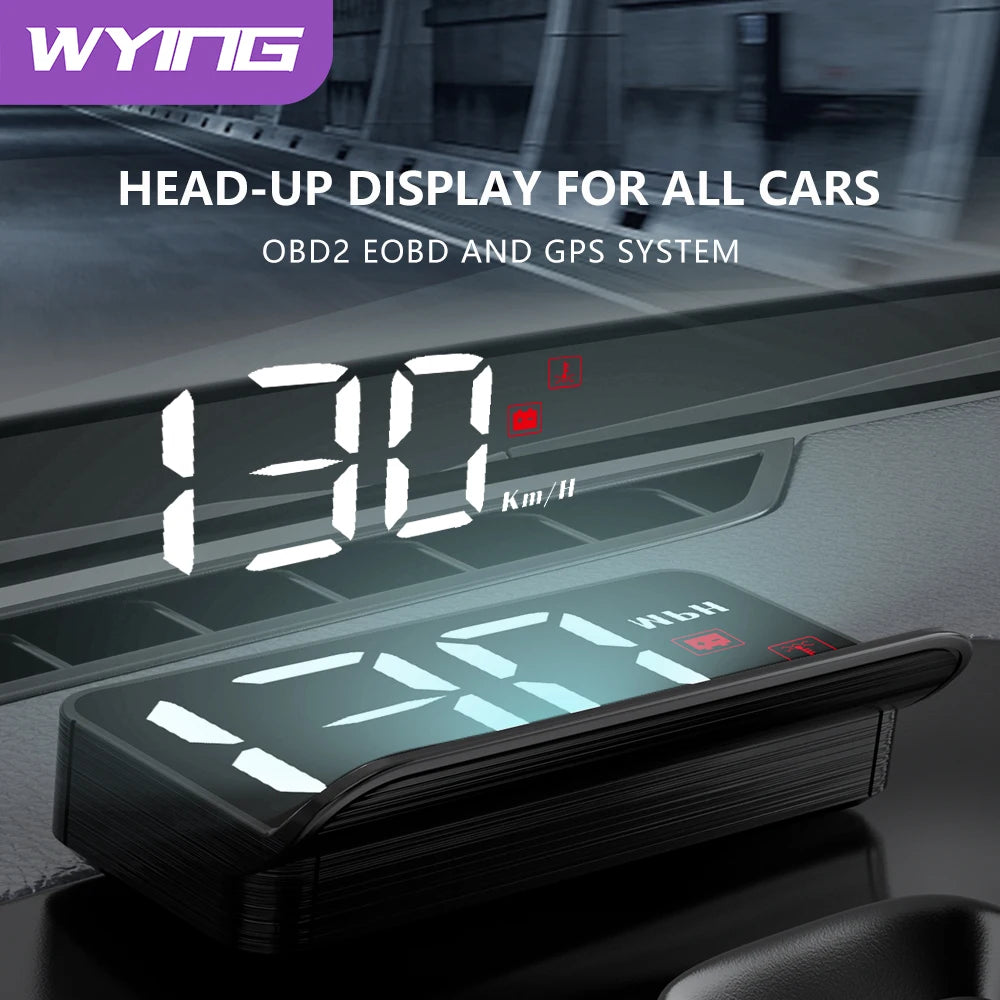

Head Up Display, HUD Projector with GPS - M1 for All Cars & M3 for OBD2 EOBD Cars

Specifications

Product Name: Head-Up Display
Car Compatibility: Two models available - one for OBD2 (check below for more details ) and another for GPS (compatible for all cars).
High-Concern Chemicals: None
Wire or Wireless: Wire
Size: 8.6 x 3.7 x 1.6 cm
Output Voltage: 12V-24V
Item Numbers: M3 (OBD2) & M1 (GPS)
Alarms: Over-speed, Fatigue Driving, Low Voltage
Material: Plastic, Electronic Components
Cable Length: 1.8M

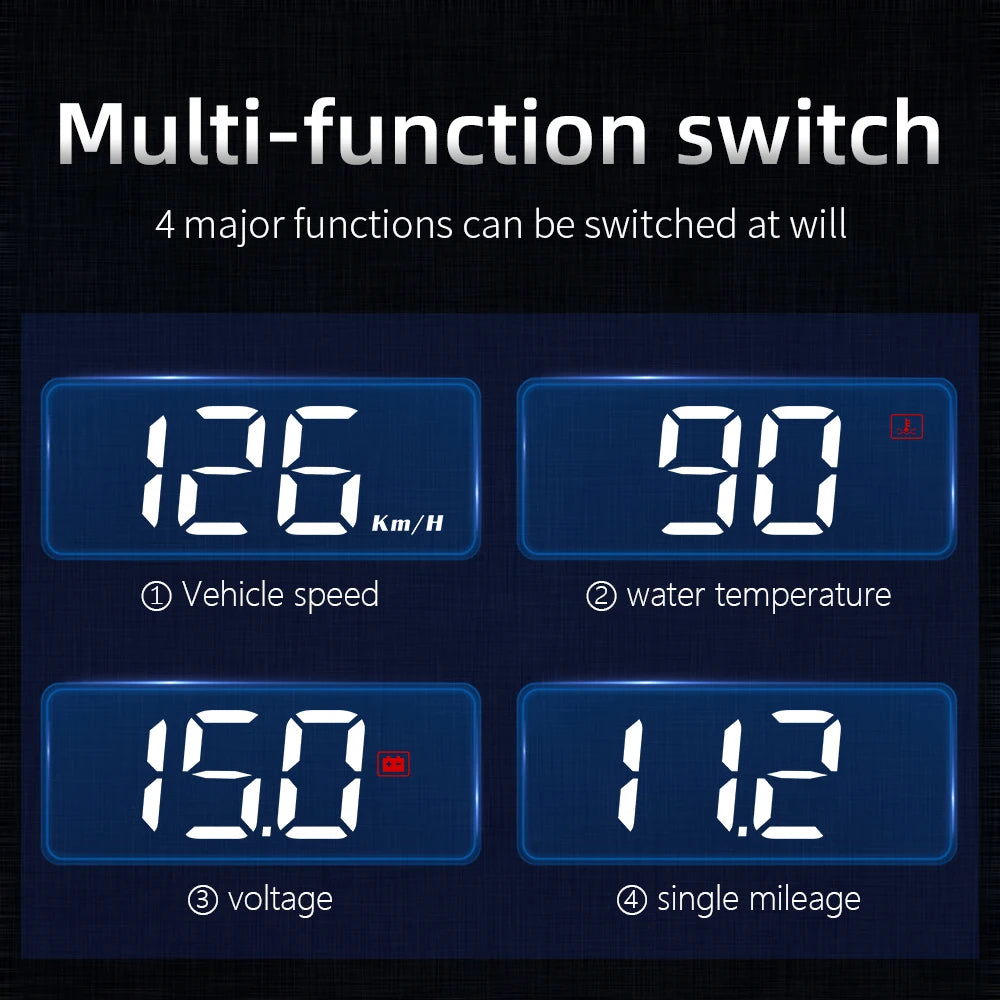

Functions

• Speed (Km/h or MPH)
• Water Temperature (°C or °F)
• Voltage
• Single Mileage
• Water Temperature Alarm
• Voltage Alarm
• Gear Shift Reminder

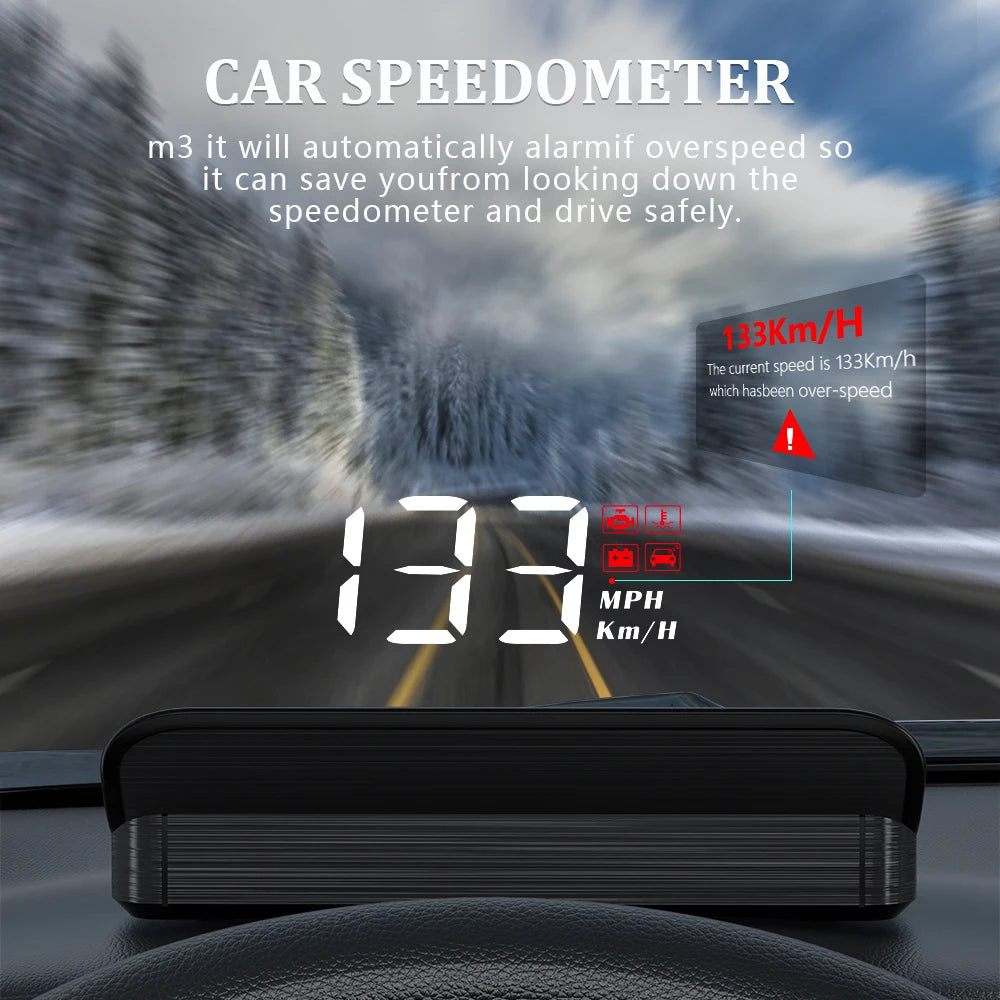

• Overspeed Alarm
• Fatigue Driving Reminder
• Engine Failure Alarm

Incompatible Cars

• Diesel Cars, Hybrid Cars

• Lada (All Series)
• All Peugeot Cars


Availability: Yes

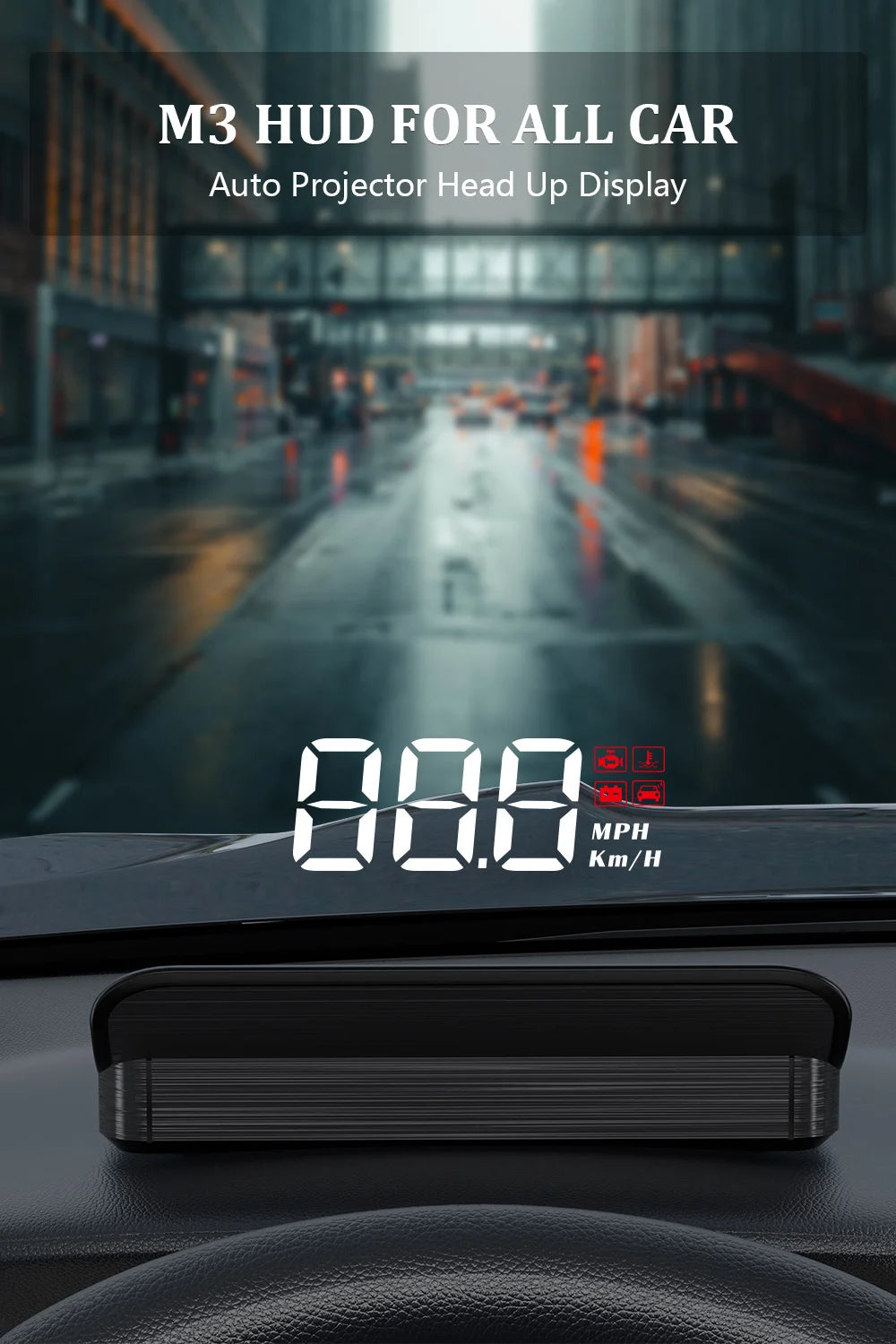

M3 Auto OBD2 GPS Head-Up Display Car Electronics HUD Projector Display Digital

Product Functions: The OBD2 version is compatible with cars using the OBD2 system. If you're unsure about compatibility, feel free to contact us for assistance. The GPS version is compatible with all cars.

Easy To Install:
OBD2 Version:

The HUD operates when the car is running and turns off with the ignition. It displays speed, coolant temperature, voltage, mileage, and can clear faulty codes. Alarms include over-speed, high water temperature, low voltage, fault code, and fatigue driving alerts. The HUD automatically shuts down 30 seconds after the engine is off and restarts 5 seconds after ignition. It also has a manual switch, which is recommended to use when the vehicle is not driven for extended periods.

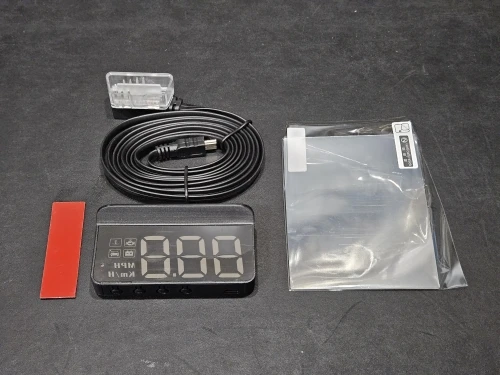

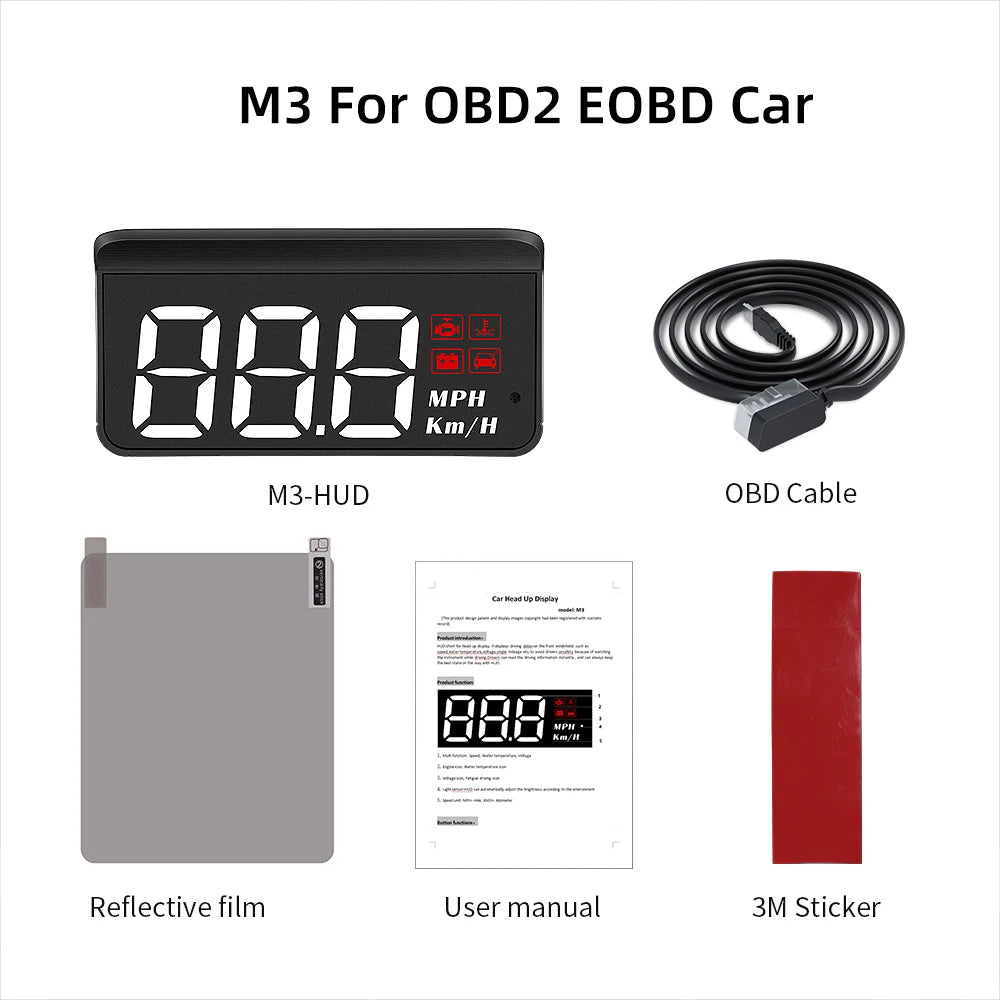

OBD2 Version

Compatible with OBD2 and EOBD systems; supports over-speed alarms. Displays speed, water temperature, and voltage.

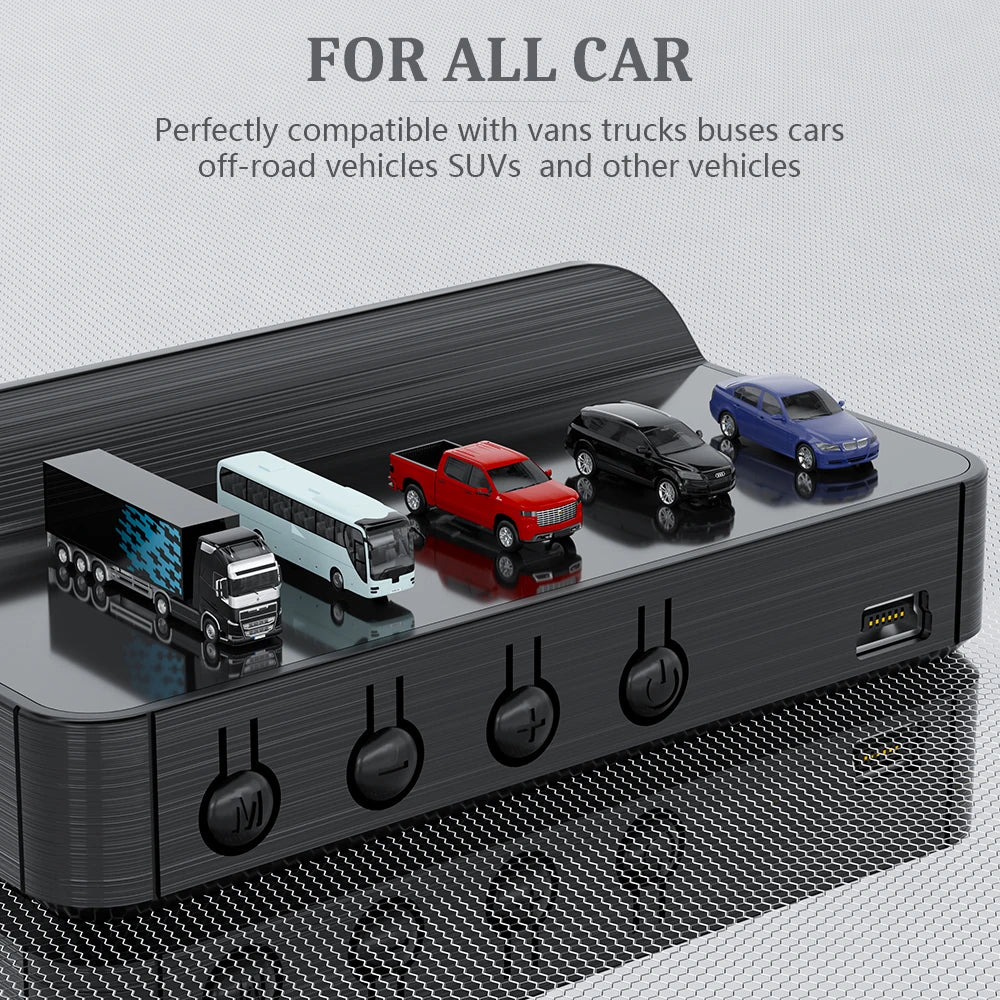

1. Button "M": Short press to switch displays or enter menu settings; long press to access menu settings (Menu 1-12), hold for 5 seconds to save and exit.
2. Button "-": Short press to navigate menus and decrease values; long press to toggle the buzzer on/off (default is on).
3. Icons for engine, water temperature, voltage, and fatigue driving.

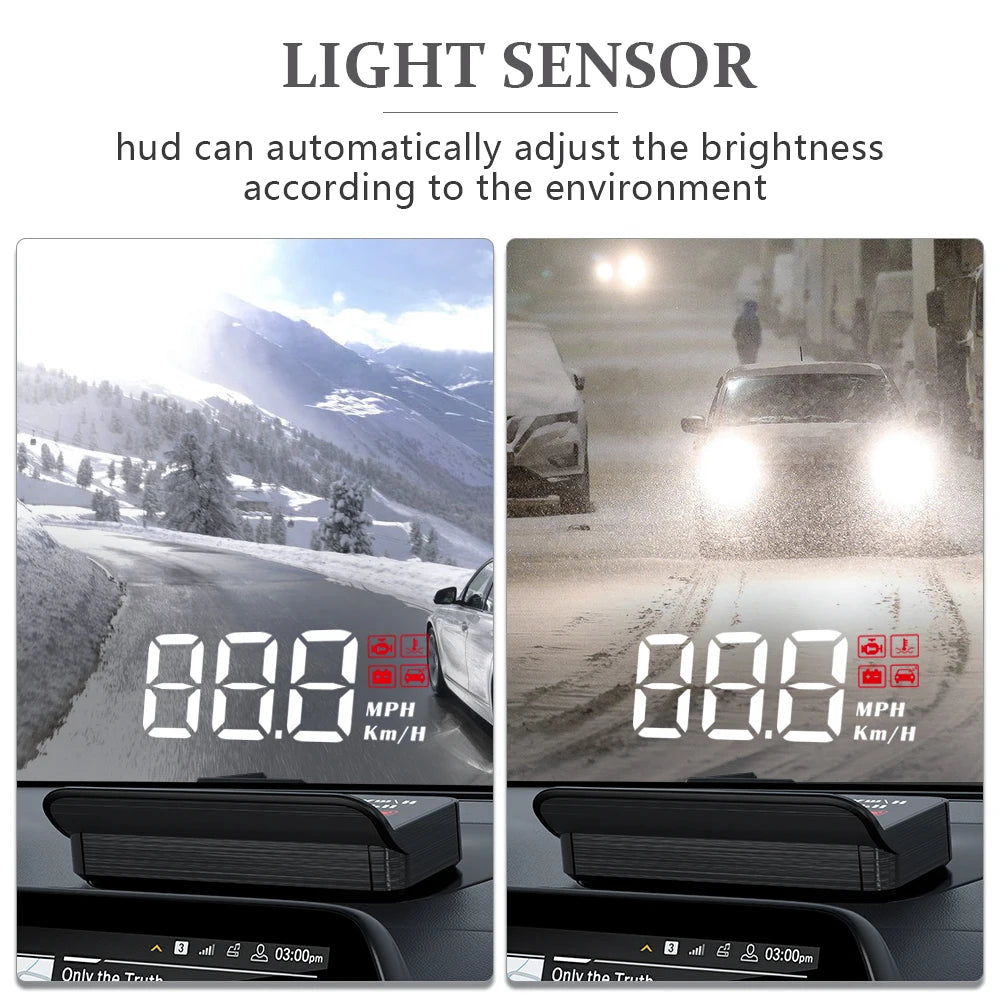

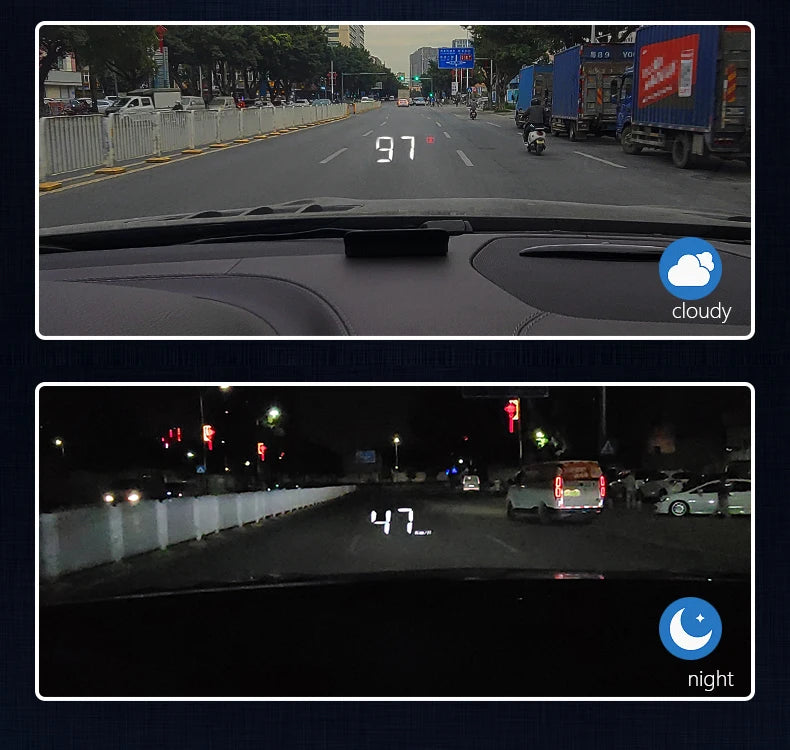

4. Automatic brightness adjustment via light sensor.
5. Speed units: MPH or KM/H.
6. OBD connection port for vehicle interface.
7. Power switch: Long press for 5 seconds to turn off/on.
8. Button "+": Short press to navigate menus and increase values; long press to turn all screens on and clear fault codes, press again to exit.

Please Note:

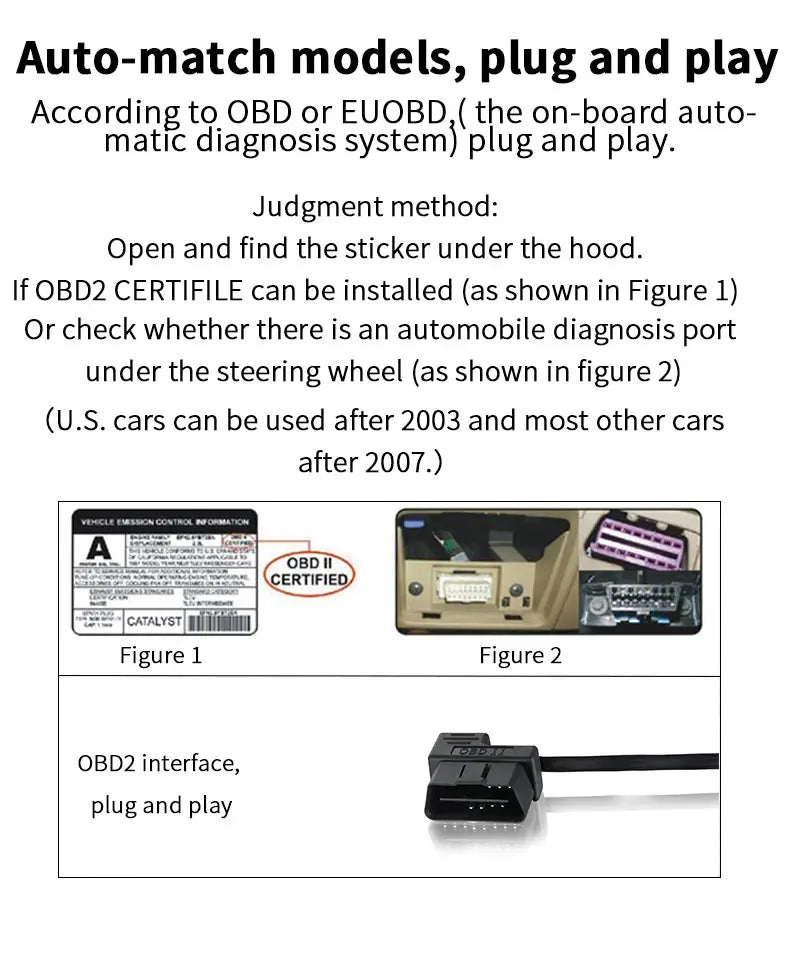

The OBD system is suitable for most cars manufactured after 2007. The OBD2 model works with OBD2 gasoline vehicles produced after 2004 in the USA and after 2008 in other countries.

GPS Version:

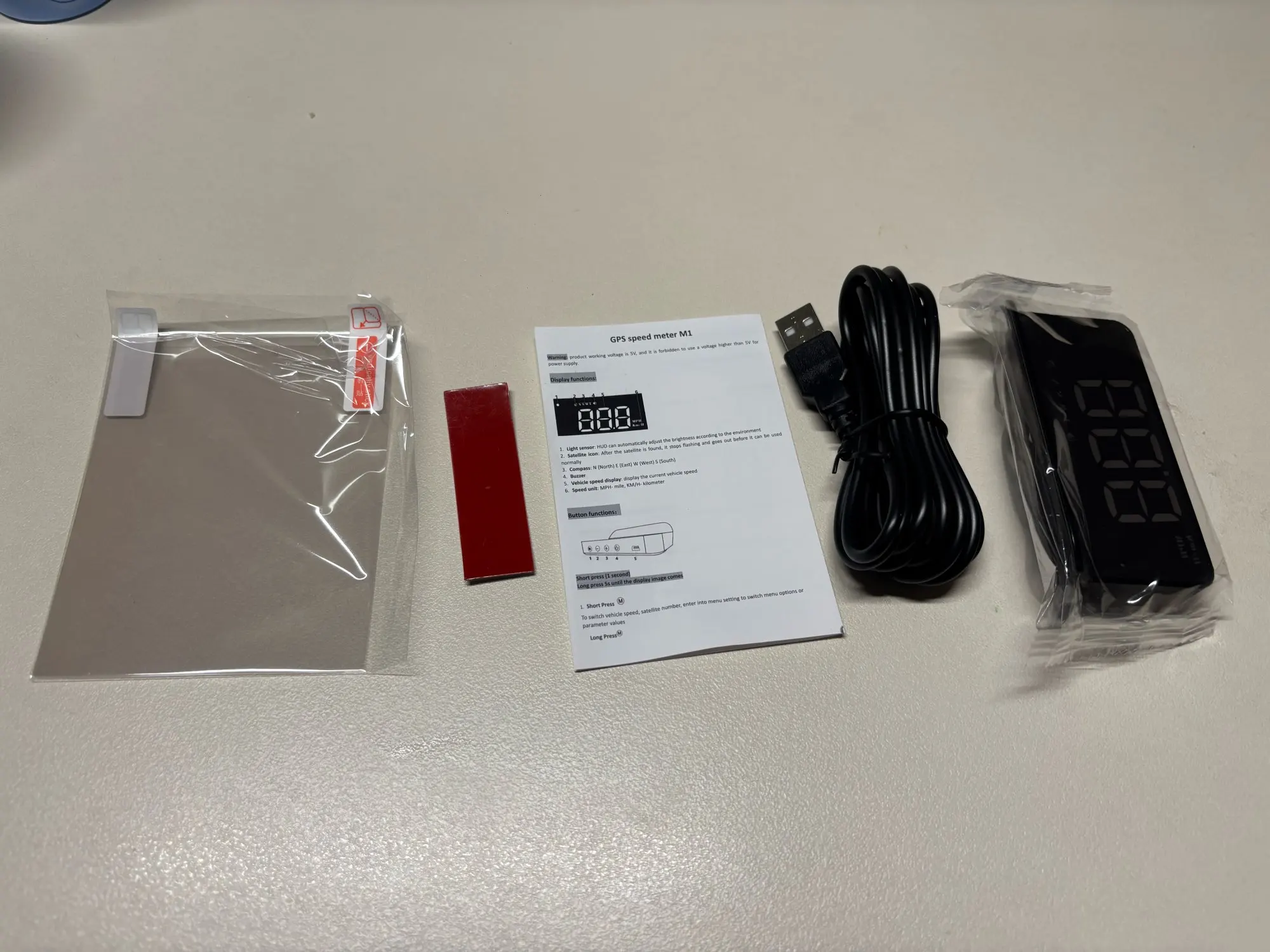

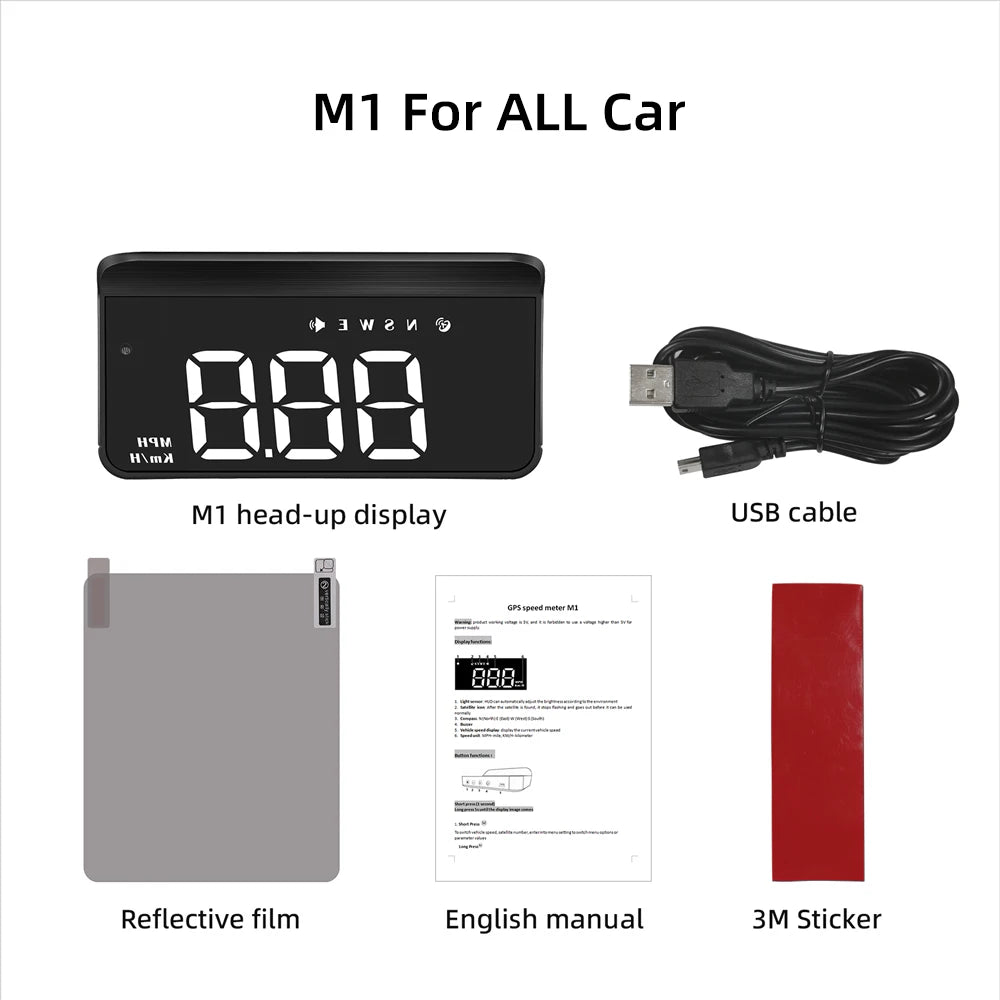

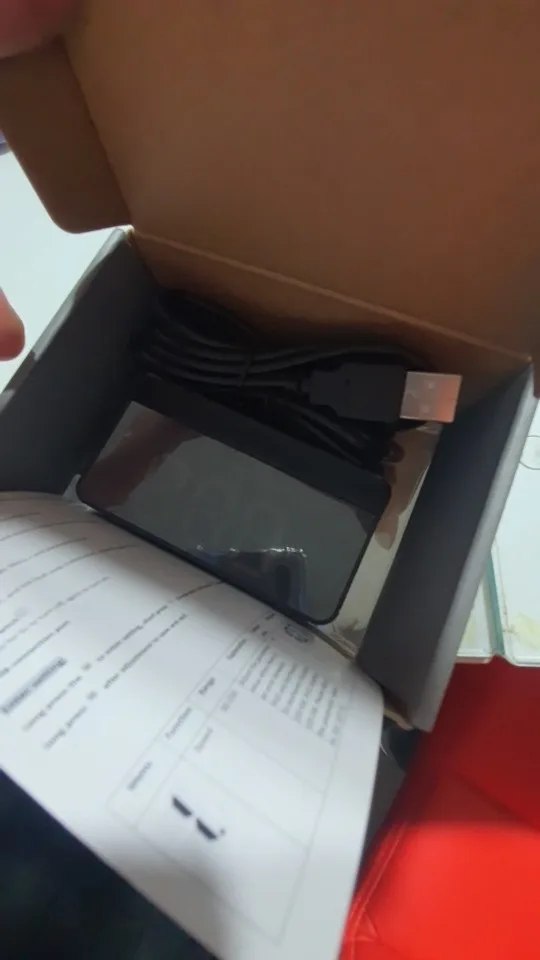

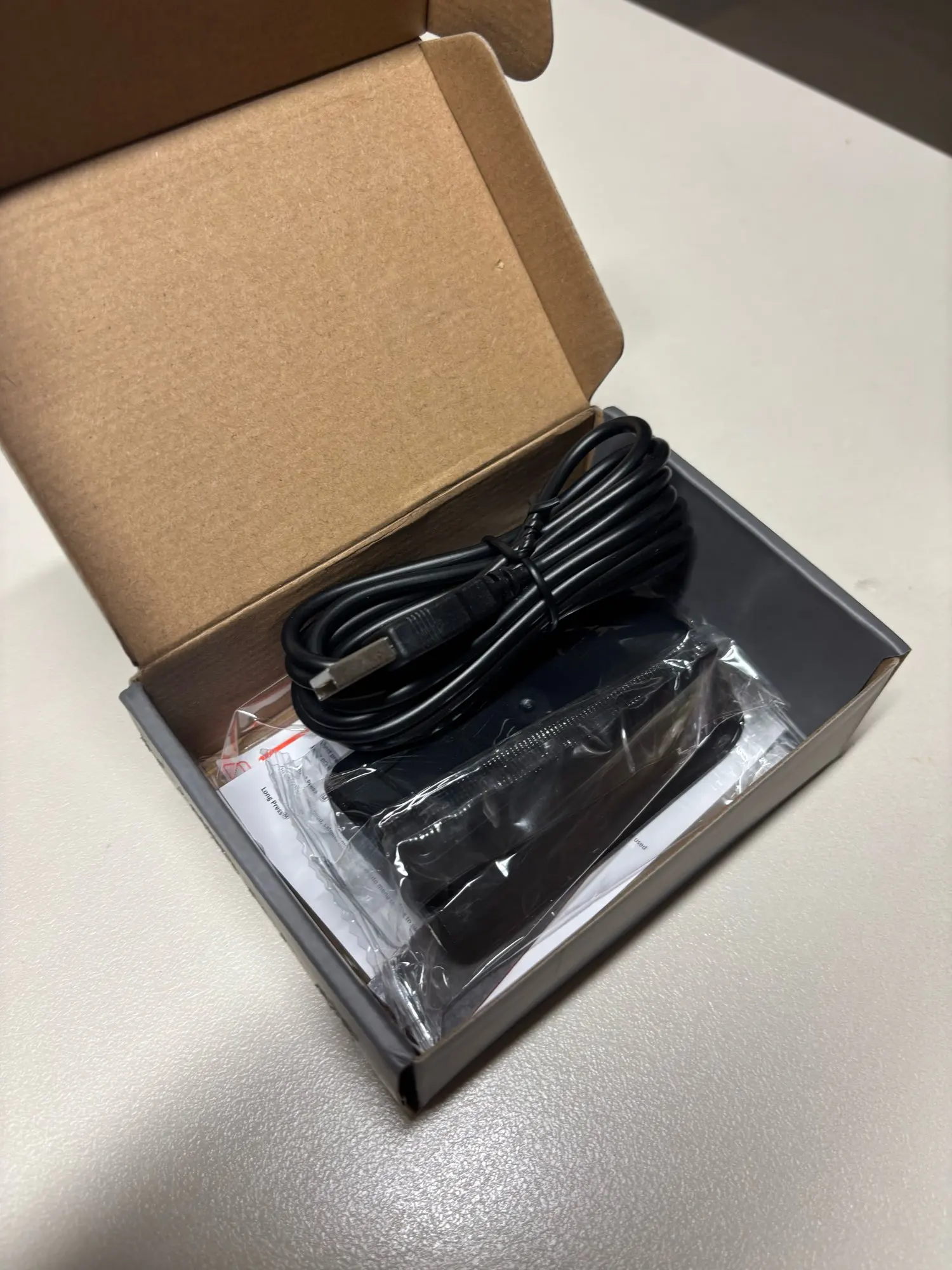

Compatible with all cars and supports over-speed alarms. The working voltage is 5V; using a voltage higher than 5V is forbidden. Some vehicles may have voltages higher than 5V, but this does not affect compatibility. The package includes a USB cable that connects to the cigarette lighter and the HUD.

Features include: Compatible with all cars and supports over-speed alarms. The working voltage is 5V; using a voltage higher than 5V is forbidden. Some vehicles may have voltages higher than 5V, but this does not affect compatibility. The package includes a USB cable that connects to the cigarette lighter and the HUD.

Features include the number of search satellites, compass directions (N for North, E for East, W for West, and S for South), vehicle speed display with speed units in MPH (miles) or KM/H (kilometers), and a Fatigue Driving Alarm set for 4 hours, adjustable between 1-8 hours, or can be turned off.

GPS Version

Compatible with all cars and supports over-speed alarms. The working voltage is 5V; using a voltage higher than 5V is forbidden. Some vehicles may have voltages higher than 5V, but this does not affect compatibility. The package includes a USB cable that connects to the cigarette lighter and the HUD.

1. After the satellite is found, the satellite icon stops flashing, indicating that the device can be used normally.

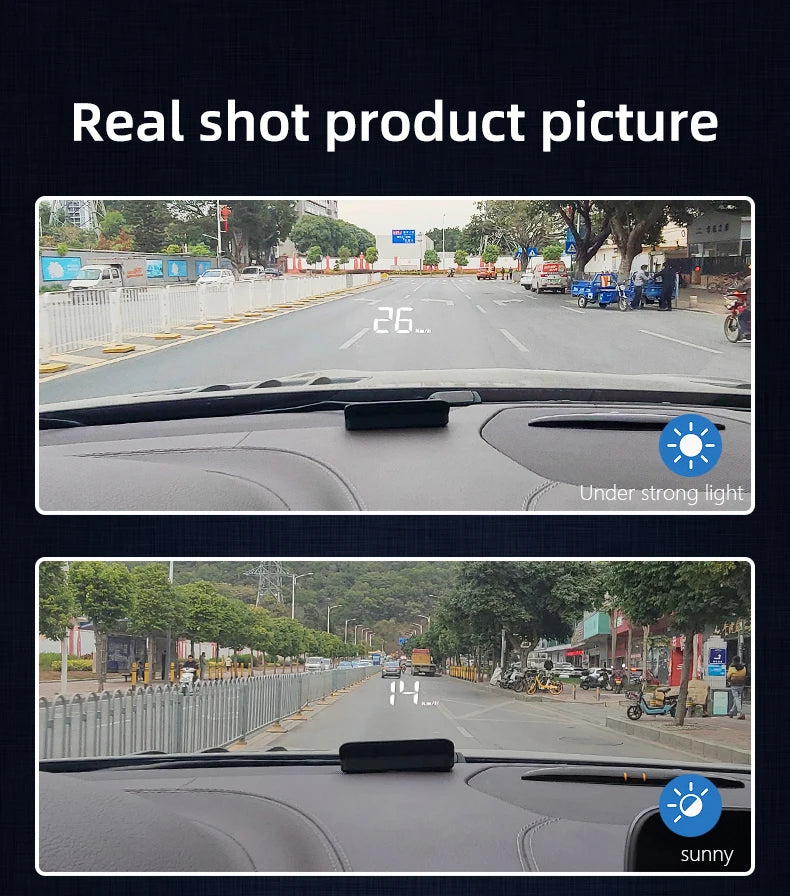

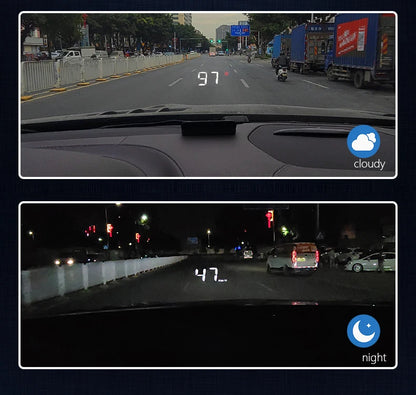

2. The HUD automatically adjusts brightness based on the environment.
3. Short pressing the button "M" switches between vehicle speed and satellite number, and also allows access to menu settings.
4. Long pressing "M" enters menu settings (see instructions for Menu 1-6); hold for 5 seconds to save and exit.
5. Short pressing the button "-" allows you to navigate settings, while a long press turns the buzzer on/off (default is on).
6. The device features a compass showing directions: N (North), E (East), W (West), S (South).
7. It displays the current vehicle speed in either MPH (miles) or KM/H (kilometers).
8. Includes an OBD connection port.
9. The power switch requires a long press for 5 seconds to turn off and another long press to turn it back on.
10. Short pressing the button "+" navigates settings, while a long press turns the screen on and eliminates fault codes; pressing it again exits.
